Description
Function:

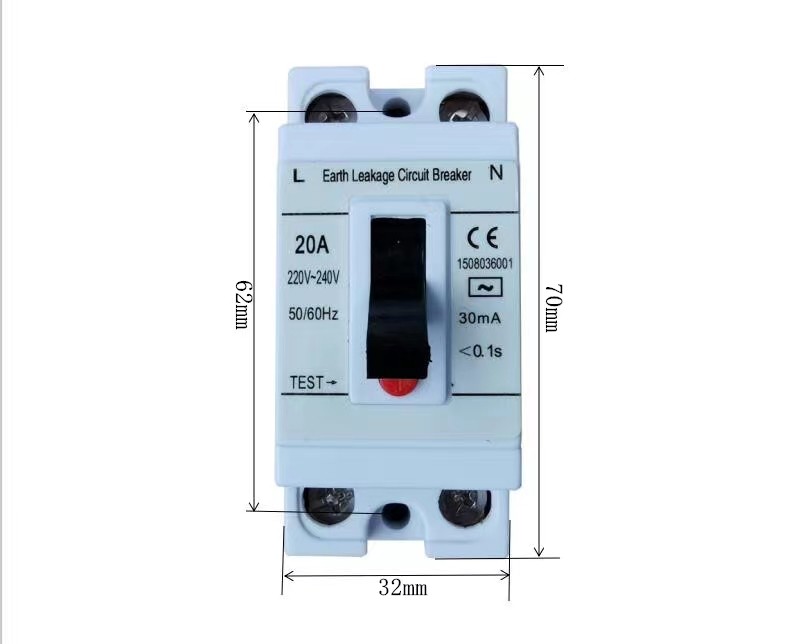

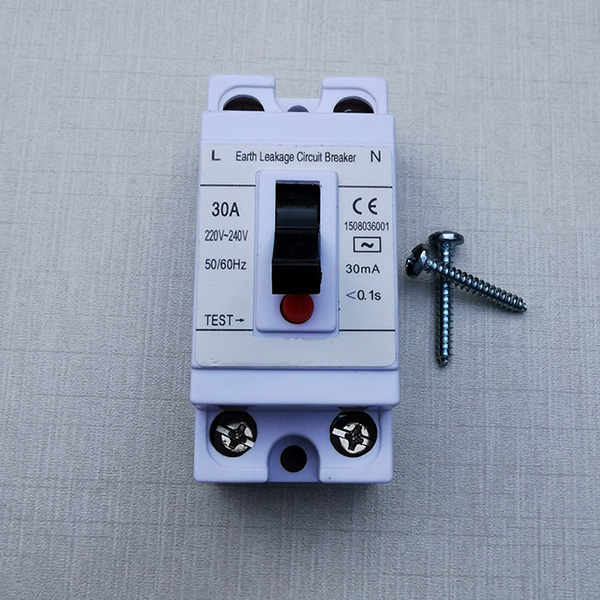

Earth Leakage Circuit Breaker is used as a protection switch for power supplying a circuit with AC 50Hz or 60Hz, voltage 220V, current up to 32A. It has inherent overload protection function. Combined with fuse, it can also provide short circuit protectin for a circuit. Besides, it can infrequently make and breaker a loaded circuit. It is especially suitable for lighting devices in houses and public places, or a single electric appliance such as refrigerator etc.
Specification:
Pole
2P1E/2P2E
Rated current ln(A)
6,10,16,20,25,30,32
Rated voltage Un (V)
115,230
Rated frequency (HZ)
50/60
Rated breaking capacity lm(A)
110V/2500A,230V/2000A
Type of instantaneous release
Type C
